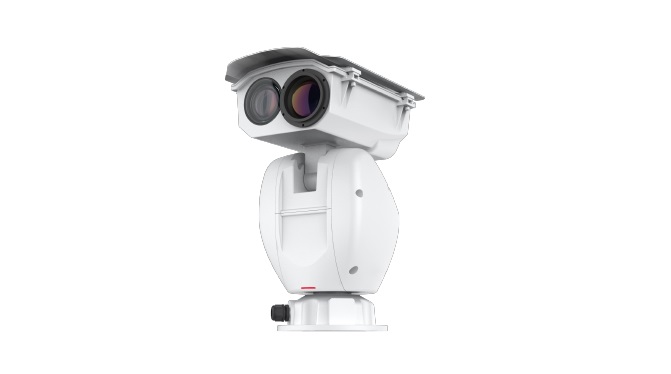

M9341-10-Th(75mm) 2T 4 million dual spectrum thermal imaging PTZ camera
Support 2 TOPS computing power;
Behavior analysis;
Supports backlight adaptation, fog penetration adaptation, and speed adaptation;
Using 1/1.8" CMOS;
Software definition supports online loading and upgrade of algorithms;
120dB super wide dynamic range, restoring true details in high-contrast scenes;

Chip Hi3519AV100
Computing power 2 TOPS
Memory DDR4 2.0 GB
Flash SPI NAND FLASH 512.0 MB
Sensor maximum image size 4MP 2560(H)*1440(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.001Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0002Lux (F1.2, AGC ON, 1/30 shutter)
Lens focal length 75mm
Lens viewing angle: horizontal: 1.7° (T end) ~ 65.3° (W end); vertical: 1.0° (T end) ~ 38.6° (W end)
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Pan-tilt rotation angle Horizontal 0°～360° Vertical -40°～90°
PTZ horizontal speed Keying speed: 0.1~100°/s Preset position speed: 100°/s
PTZ vertical speed Keying speed: 0.1~40°/s Preset speed: 40°/s
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Audio port support
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M/1000M adaptive Ethernet port
Power supply type AC24V
Power consumption: Maximum power consumption: 83W, Typical power consumption: 33W
Working temperature -40℃~60℃
Working humidity 5%~95% (no condensation)
Protection grade IP66
