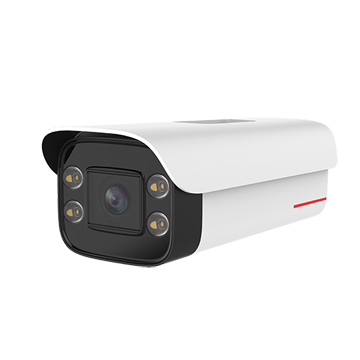

Huawei C2120-10-L-P (3.6mm) 2 million AI white light tube camera
Support 1 TOPS computing power;
Support behavior analysis, crowd situation analysis, target, human body;
Using 1/2.7" CMOS;
120dB super wide dynamic range, restoring true details in high-contrast scenes;
Detail
product specifications
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
target target detection
Human body detection
Chip Hi3516DV300
Computing power 1 TOPS
Memory DDR3 0.2500 GB
Flash SPI NAND FLASH
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/2.7" CMOS
Minimum illumination color: 0.002Lux (F1.6, AGC ON), black and white: 0.001Lux (F1.6, AGC ON)
Lens focal length 3.6mm
Lens viewing angle Horizontal: 49.2°; Vertical: 36°
White light fill light distance 30m
Video encoding format MJPEG/H.264/H.265
Video frame rate 30/25fps can be set
Ethernet interface supported
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Power supply type DC12V, PoE (IEEE 802.3af)
Power consumption: Maximum power consumption: 10W, typical power consumption: 2.8W
Working temperature -30℃~60℃
Working humidity 5%~95% (no condensation)
Protection grade IP67
