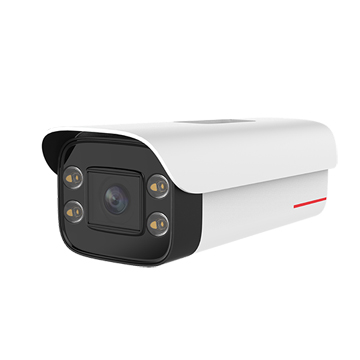

M2121-EFL-Sf(8-32mm) 1T 2 million face capture tube camera
Support 1 TOPS computing power;
Supports heat maps, 1-to-N function, behavior analysis, faces, and human bodies;
Using 1/1.8" CMOS;
120dB super wide dynamic range, restoring true details in high-contrast scenes;

Chip Hi3516DV300
Computing power 1 TOPS
Memory DDR3 1.0 GB
Flash SPI NAND FLASH 256.0 MB
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.001Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter)
Lens focal length 8-32mm
Lens viewing angle: horizontal: 13.44° (T end) ~ 42.3° (W end); vertical: 7.7° (T end) ~ 23.34° (W end)
White light fill light distance 20m
Video encoding format MJPEG/H.264/H.265
Heat map support
1 drag N function supported
Behavior Analysis Wandering Detection
Face face detection, face attribute detection
Human body detection
Ethernet interface supported
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M Ethernet port
Power supply type DC12V, PoE (IEEE 802.3at)
Power consumption: Maximum power consumption: 15W, typical power consumption: 3.8W
Working temperature -30℃~60℃(fill light off) -30℃~40℃(fill light on)
Working humidity 5%~95% (no condensation)
Protection grade IP66
