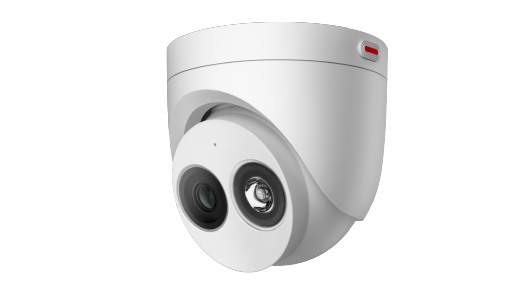

C3050-10-LI-PV 1T 5 million dual-light full-color warning AI dome camera

C3050-10-LI-PV(3.6mm) 1T 5 million dual-light full-color warning AI dome camera

Support 1 TOPS computing power;
Support behavior analysis, crowd situation analysis, target, human body;
Supports backlight adaptation and fog penetration adaptation;
Using 1/2.7" CMOS;
Software definition supports online loading and upgrade of algorithms;
120dB super wide dynamic range, restoring true details in high-contrast scenes;
Supports starlight/full color/intelligent fill light and other rich fill light modes to choose from;
Built-in dual MIC and speakers to realize voice reminders during work;
Built-in rich scene voices and supports custom voice import;
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection, battery car detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Target target detection, target attribute detection
Human body detection
Chip Hi3516DV300
Computing power 1 TOPS
Memory DDR3 0.5 GB
Flash SPI NAND FLASH
Sensor maximum image size 5MP 2560(H)*1920(V)
Sensor photosensitive surface size 1/2.7" CMOS
Minimum illumination color: 0.005Lux (F1.6, AGC ON), black and white: 0.0025Lux (F1.6, AGC ON), 0Lux (infrared on)
Lens focal length 3.6mm
Lens viewing angle Horizontal: 78.8°; Vertical: 55.9°
Infrared light fill distance 30m
White light fill light distance 20m
Video encoding format MJPEG/H.264/H.265
Video frame rate 5MP 20fps, resolution less than 5MP 30/25fps can be set
Audio encoding format G.711a/G.711u/G.726/OPUS
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Power supply type DC12V, PoE (IEEE 802.3af)
Power consumption: Maximum power consumption: 5.8W, typical power consumption: 3.3W
Working temperature -30℃~60℃
Working humidity 5%~95% (no condensation)
Protection grade IP67
Basic parameters
Sensor maximum image size 5MP 2560(H)*1920(V)
Sensor photosensitive surface size 1/2.7" CMOS
Minimum illumination color: 0.005Lux (F1.6, AGC ON), black and white: 0.0025Lux (F1.6, AGC ON), 0Lux (infrared on)
Shutter supports slow shutter; slow shutter levels: 1/3, 1/4, 1/8, 1/12, 1/15; non-slow shutter levels: 1/25, 1/30, 1/50, 1/60, 1/90,1/100,1/120,1/125,1/180,1/250,1/350,,1/500,1/725,1/1000,1/1500,1/2000,1 /3000,1/4000,1/6000,1/10000,1/30000,1/100000, custom shutter; default value 1/25;
Day and night mode supported; automatic (ICR)/color/black and white/timing Default automatic Sensitivity high, medium, low Default high Image trigger/internal trigger
Gain control: During manual exposure, a total of 101 steps from 0 to 100 can be set in steps of 1. Default is 0.
White balance automatic/manual/one-key trigger
Digital Noise Reduction 2D/3D Noise Reduction
Wide dynamic range 120dB
Strong light suppression support
Video anti-shake function is not supported; sensitivity is not supported;
Algorithm fog penetration support
Exposure compensation support
Exposure mode support
Signal-to-noise ratio >45dB
Backlight adaptive support
Fog adaptive support
Distortion correction support
Corridor mode supported
Mirror mode supports image mirroring (horizontal mirroring, vertical mirroring, horizontal and vertical mirroring)
Privacy masking support
Lens/fill light
Lens focal length 3.6mm
Maximum aperture F1.6
Lens aperture type fixed aperture
Lens viewing angle Horizontal: 78.8°; Vertical: 55.9°
Built-in infrared light support
Infrared light fill distance 30m
Built-in white light support
White light fill light distance 20m
video/audio
Video encoding format MJPEG/H.264/H.265
Number of video encoding channels: three streams
Main stream resolution 2560×1920(5MP), 2560×1440(4MP), 2048×1536(3MP), 1920×1080(1080P), 1280×720(720P)
Sub-stream resolution Sub-stream one: 720×576 (PAL), 720×480 (NTSC), 352×288 (PAL), 352×240 (NTSC); Sub-stream two: 352×288 (PAL), 352×240(NTSC)
Video frame rate 5MP 20fps, resolution less than 5MP 30/25fps can be set
Video bit rate only for H.264 and H.265 1080P~4K 512Kbps ~ 16Mbps 720P 384Kbps ~ 8Mbps D1 256K ~ 4Mbps CIF 32K ~ 1Mbps
Smart encoding Extra265/264
ROI (Region of Interest Coding) Each channel supports 4 groups. The quality of ROI relative to non-ROI is adjustable from 0 to 10 in steps of 1.
Audio encoding format G.711a/G.711u/G.726/OPUS
Audio sampling rate G.711a/G.711u/G.726: 8K OPUS: 8K/12K/16K/24K/48K
Audio code rate G.711a/G.711u: 64kbps G.726: 16, 24, 32, 40kbps OPUS can be set: 16/24/32/40/64/96/128/160/192/224/256/288Kbps Can be set
intelligent
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection, battery car detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Target target detection, target attribute detection
Human body detection
interface
SD interface supports maximum capacity. Provides MicroSD card slot, supports MicroSDHC/MicroSDXC, and supports memory cards with a maximum capacity of 256GB.
Audio input interface supported (2 channels built-in MIC)
Audio output interface support (1-way speaker)
Switching interface supported, 2 inputs/1 output
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Network docking
Access protocol GB/T 28181 (2011, 2016 protocol specifications), SDK (private protocol), Rest API (private protocol), GA/T 1400
Protocols supported by IPV4: TCP, IPv4, UDP, DHCP, DNS, ICMP, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/V3), 802.1x, QoS, SMTP, PPPOE Note: 1 Northbound protocol should be adapted to PPPOE dial-up scenarios
IPV6 supported protocols HTTPS, RTP, RTCP, Onvif, RTSP, IPv6, ICMPv6, DHCPv6
Business constraints supported by IPV6 Web page: live (static IPV6), video (static IPV6), IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration
Onvif: live (static IPV6), video (static IPV6), IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration, Probe service not supported
Note:
1. Does not support IPV6 multicast
2. Does not support DNS
3. Does not support IP conflict detection
Safety
User permissions are divided into 3 levels: administrator, senior operator, and ordinary operator
Safe mode Username and password authentication, support 802.1.x, HTTPS digital certificate
Video digital watermark support
GB35114 supported
Secure boot support
General specifications
Power supply type DC12V, PoE (IEEE 802.3af)
Power consumption: Maximum power consumption: 5.8W, typical power consumption: 3.3W
Working temperature -30℃~60℃
Working humidity 5%~95% (no condensation)
Lightning protection and surge protection 2kV
Protection grade IP67
Overall machine weight 0.38kg
Packing weight 0.5kg
Overall machine size φ104mm×98mm
Packaging size 125mm×113mm×115mm
Accessories
Adapter--5degC-45degC-90V-270V-12V/2A-Chinese plug/DC head
EADAPTE09
(02220294)
DC12V 2A Australian standard power adapter
HW-120200A2W
(02220648)
Adapter--5degC-45degC-150V-264V-12V1.5A-2 PIN/2.1*5.5*9.5 H PLUG-CCC 2PIN
HW-120150C3W
(02220931)
Adapter--5degC-40degC-170V-240V-12V/1A-CCC 2PIN/DC 2.1*5.5*9.5 H PLUG-Black
HW-120100C9W
(02221074)
Adapter--40degC-65degC-90V-290V-56.0V/1.61A-C14/RJ45
AD-560161T0E
(02221409)
Adapter--20degC-50degC-100V-240V-12.5V/2A-C8 in/2pin out 62368 split from 02220764
HW-125200D1D
(02221473)
Adapter--5degC-45degC-90V-270V-12V/2A-CE/2.1*5.5*9.5 H PLUG-Erp Level 6, Thailand vertical, split from 02220778, non-Huawei LOGO
HW-120200U7W
(02221797)
Hemisphere\Mini Dome Wall Mount Bracket
ACC3311
(51661JVR)
Hemisphere indoor lifting bracket
ACC3321
(51661LKU)
