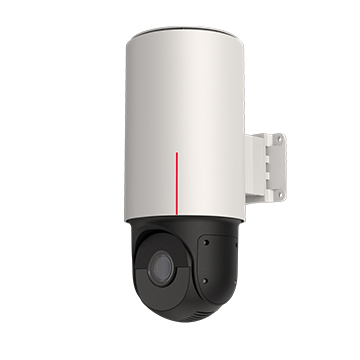

M7641-10-Z23-RT 2T 4 million microwave AI dome camera
Support 2 TOPS computing power;
Supports behavior analysis, crowd situation analysis, target, human body, and vehicle event detection;
Supports backlight adaptation, fog penetration adaptation, and speed adaptation;
Using 1/1.8" CMOS;
Software definition supports online loading and upgrade of algorithms;
120dB super wide dynamic range, restoring true details in high-contrast scenes;
Support VideoX self-organizing network;
Support solar power supply;
Key specifications
Vehicle incident detection, illegal parking detection
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Target target detection, target capture enhancement, target attribute detection, target recognition
Human body detection, human attribute detection
Chip Hi3519AV100
Computing power 2 TOPS
Memory DDR4 2.0 GB
Flash SPI NAND FLASH
Sensor maximum image size 4MP 2560(H)*1440(V)
Sensor photosensitive surface size 1/1.8" CMOS
Minimum illumination Color: 0.001Lux (F1.2, AGC ON, 1/30 shutter) Black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter)
Lens focal length 6.1-140mm
Lens viewing angle: Horizontal: 3.4° (T end) ~ 55.4° (W end) Vertical: 1.9° (T end) ~ 33.0° (W end)
Infrared light fill distance 200m
Video encoding format MJPEG/H.264/H.265
Video frame rate 30/25fps can be set, the default value is 25fps
Audio encoding format G.711a/G.711u/G.726/OPUS/AAC
Pan-tilt rotation angle: horizontal 0°～360°, vertical -15°～90°
PTZ horizontal speed Keying speed: 0.1~160°/s Preset position speed: 240°/s
PTZ vertical speed Keying speed: 0.1~30°/s Preset speed: 50°/s
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Power supply type DC12V (DC10.8V~DC15V)
Power consumption: Maximum power consumption: 28.5W, typical power consumption: 11.1W; sleep low power consumption: 1.2W
Working temperature -40℃~60℃
Working humidity 5%~95% (no condensation)
Protection grade IP66
Basic parameters
Sensor maximum image size 4MP 2560(H)*1440(V)
Sensor photosensitive surface size 1/1.8" CMOS
Minimum illumination Color: 0.001Lux (F1.2, AGC ON, 1/30 shutter) Black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter)
Shutter supports slow shutter; slow shutter levels: 1/3, 1/4, 1/8, 1/12, 1/15; non-slow shutter levels: 1/25, 1/30, 1/50, 1/60, 1/90,1/100,1/120,1/125,1/180,1/250,1/350,,1/500,1/725,1/1000,1/1500,1/2000,1 /3000,1/4000,1/6000,1/10000,1/30000,1/100000, custom shutter; default value 1/25;
Day and night mode supported; automatic (ICR)/color/black and white Default automatic Sensitivity high, medium, low Default high Image trigger/internal trigger
Gain control: During manual exposure, a total of 101 steps from 0 to 100 can be set in steps of 1. Default is 0.
White balance automatic/manual/one-key trigger
Digital Noise Reduction 2D/3D Noise Reduction
Wide dynamic range 120dB
Strong light suppression support
Video anti-shake support function; support sensitivity;
Algorithm fog penetration support
Exposure compensation support
Exposure mode support
Signal-to-noise ratio >45dB
Electric focus support
Day and night focus compensation support
Backlight adaptive support
Fog adaptive support
Speed adaptive support
Mirror mode supports image mirroring (horizontal mirroring, vertical mirroring, horizontal and vertical mirroring)
Digital zoom support
Privacy masking support
Special feature
Wireless transmission: The device has a built-in 15° horizontal/44° vertical directional antenna RT, supports VideoX self-organizing network, and uses the 5.1~5.8GHz public frequency band wireless network
Sleep wake-up supports scheduled wake-up
Solar power supply supports solar power supply and solar component management
Lens/fill light
Lens focal length 6.1-140mm
Maximum aperture F1.61 (W end)-F4.13 (T end)
Lens aperture type Precision aperture (DC-Iris+Hall)
Lens viewing angle: Horizontal: 3.4° (T end) ~ 55.4° (W end) Vertical: 1.9° (T end) ~ 33.0° (W end)
Built-in infrared light support
Infrared light fill distance 200m
video/audio
Video encoding format MJPEG/H.264/H.265
Number of video encoding channels: three streams
Main stream resolution 2560×1440(4MP), 2304×1296(3MP), 1920×1080(1080P), 1280×720(720P)
Sub-stream resolution Sub-stream one: 720×576 (PAL), 720×480 (NTSC), 352×288 (PAL), 352×240 (NTSC); Sub-stream two: 352×288 (PAL), 352×240(NTSC)
Video frame rate 30/25fps can be set, the default value is 25fps
Video bit rate only for H.264 and H.265 1080P~4K 512Kbps ~ 16Mbps 720P 384Kbps ~ 8Mbps D1 256K ~ 4Mbps CIF 32K ~ 1Mbps
Smart encoding Extra265/264
ROI (Region of Interest Coding) Each channel supports 4 groups. The quality of ROI relative to non-ROI is adjustable from 0 to 10 in steps of 1.
Audio encoding format G.711a/G.711u/G.726/OPUS/AAC
Audio sampling rate G.711a/G.711u/G.726: 8K OPUS: 8K/12K/16K/24K/48K
Audio code rate G.711a/G.711u: 64kbps G.726: 16, 24, 32, 40kbps OPUS can be set: 16/24/32/40/64/96/128/160/192/224/256/288Kbps Can be set
Built-in PTZ
Pan-tilt rotation angle: horizontal 0°～360°, vertical -15°～90°
PTZ horizontal speed Keying speed: 0.1~160°/s Preset position speed: 240°/s
PTZ vertical speed Keying speed: 0.1~30°/s Preset speed: 50°/s
Watch mode support
Cruise track support
Preset positions support 256 (including 1 guard position)
Guard position supports 1 guard position
intelligent
Vehicle incident detection, illegal parking detection
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Target target detection, target capture enhancement, target attribute detection, target recognition
Human body detection, human attribute detection
interface
SD interface supports maximum capacity. Provides MicroSD card slot, supports MicroSDHC/MicroSDXC, and supports memory cards with a maximum capacity of 256GB.
Audio input interface supported (1 LINE IN or 1 external MIC)
Audio output interface supports (1 LINE OUT)
RS485 interface supported, 3 half-duplex RS485 interfaces
Switching interface supported, 4 inputs/2 outputs
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Network docking
Access protocol GB/T 28181 (2011, 2016 protocol specifications), SDK (private protocol), Rest API (private protocol), GA/T 1400
Protocols supported by IPV4: TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/V3), 802.1x, QoS,SMTP
IPV6 supported protocols HTTPS, RTP, RTCP, RTSP, Onvif, IPv6, ICMPv6, DHCPv6
Business constraints supported by IPV6 Web page: live (static IPV6), recording (static IPV6), IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration; Onvif: live (static IPV6), recording (static IPV6), IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration, and Probe service are not supported. Note: 1. Does not support IPV6 multicast, 2. does not support DNS, 3. does not support IP conflict detection
Safety
User permissions are divided into 3 levels: administrator, senior operator, and ordinary operator
Safe mode Username and password authentication, support 802.1.x, HTTPS digital certificate
Video digital watermark support
Image digital watermark support
GB35114 supported
Secure boot support
Security/encryption intrusion detection support
General specifications
Power supply type DC12V (DC10.8V~DC15V)
Power consumption: Maximum power consumption: 28.5W, typical power consumption: 11.1W; sleep low power consumption: 1.2W
Working temperature -40℃~60℃
Working humidity 5%~95% (no condensation)
Windows self-cleaning support
Window self-cleaning index 1. External AF coating process, hardness not less than 6H; 2. Transmittance not less than 88%@400-900nm 3. AF coating water droplet contact angle >110°
Lightning protection and surge protection 6kV
Protection grade IP66
Overall machine weight 6.0kg
Packing weight 7.4kg
Overall machine size 195mm×271mm×470mm
Packaging size 575mm×380mm×320mm

Accessories
Adapter--5degC-45degC-90V-270V-12V3A-C8/2.1*5.5*9.5 H DC head ("L")
HW-36-12AC8D-1
(02221316)
Ball machine column bracket
ACC3631
(21154636)
Ball machine lifting bracket
ACC3621
(51661MCK)
wall mount base
ACC3623
(51661TLL)
Integrated site bracket
ACC3624-02
(51661TLM-001)
