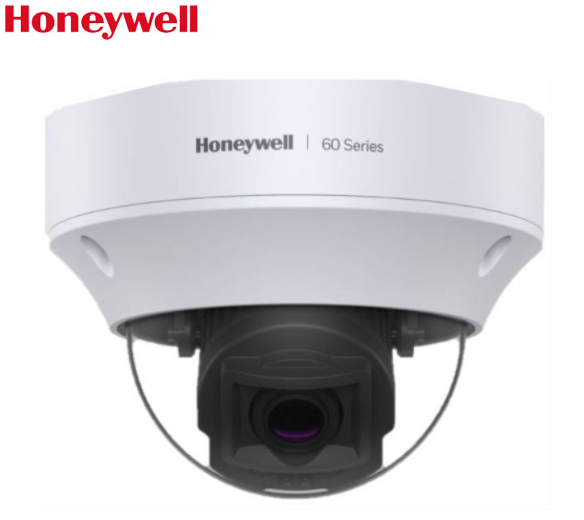

HC60W45R4 霍尼韦尔60系列摄像机
Video Standard NTSC / PAL
Scanning System Progressive
Image Sensor (Size : H × V) 1/2.8” CMOS (5.18 x 3.89 mm)
Number Of Pixels (H × V) 5MP (2560 x 1920)
Min. illumination (Color/B&W) 0.04 Lux / 0Lux (@F1.4 IR on) 0.04 Lux / 0Lux (@F1.6 IR on)
S/N Ratio 60 dB
Electronic Shutter Speed 1/32000 ~ 1/30
IR Distance Up to 50 m (165 ft)
IR Light Control Smart IR (Auto / Manual) / OFF, External IR trigger by output
IR Light Number 4
Removable IR-Cut Filter Yes
Day/Night Auto / Day / Night / Synchronize with digital input / Schedule
Backlight Compensation WDR, HLC
White Balance Auto / Fixed Current / Manual
Gain Control 0-100 %
Wide Dynamic Range >120 dB
Noise Reduction 3D DNR
Lens (Remote focus) 7 ~ 22 mm, MFZ, P-IRIS,F 1.6 ~ F 2.9
Angle Of View H: 39° ~ 16°, V: 29° ~ 12°
G-Sensor Support Camera Direction OSD Display (Default - Off)
Privacy Masking Off / On (5 Areas)
Defog Support
Encryption Chipset Built-in FIPS encryption Chipset
Local Storage Micro SD / SDHC / SDXC card slot (up to 256 GB), SD Card encryption
Micro USB Support Wifi Dongle for configuration
Alarm Inputs / Outputs 2 In / 1 Relay
