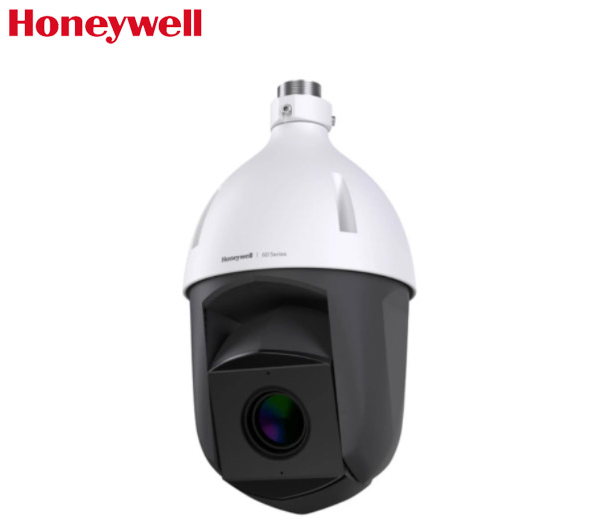

HC60W45R2 霍尼韦尔60系列摄像机
Video Standard NTSC / PAL
Scanning System Progressive
Image Sensor (Size : H × V) 1/2.8” CMOS (5.18 x 3.89 mm)
Number Of Pixels (H × V) 2MP
Min. illumination (Color/B&W) Color: 0.07 lux @F1.6 1/30sec BW: 0 lux @F1.6 (IR on)
S/N Ratio 60 dB
Electronic Shutter Speed 1/100000 ~ 1/1
IR Distance Up to 200 m
IR Light Control Smart IR (Auto / Manual) / OFF, External IR trigger by output
IR Light Number 18
Removable IR-Cut Filter Yes
Day/Night Auto / Day / Night / Synchronize with digital input / Schedule
Backlight Compensation WDR, HLC
White Balance Auto / Fixed Current / Manual
Gain Control 0-100 %
Wide Dynamic Range >120 dB
Noise Reduction 3D DNR
Lens (Remote focus) 40x Optical Zoom , Auto Focus , 4.25mm ~ 170mm, DC-IRIS, F1.6~ F4.95
Angle Of View H: 65.66° ~ 1.88° V:39.4° ~ 1.09°
Electronic Image Stabilization Support
G-Sensor Support Camera Direction OSD Display (Default - Off)
Privacy Masking Off / On (24Areas)
Defog Support
Encryption Chipset Built-in FIPS encryption Chipset
Local Storage Micro SD / SDHC / SDXC card slot (up to 256 GB), SD Card encryption
Micro USB Support Wifi Dongle for configuration
Alarm Inputs / Outputs 2 In / 1 Out
