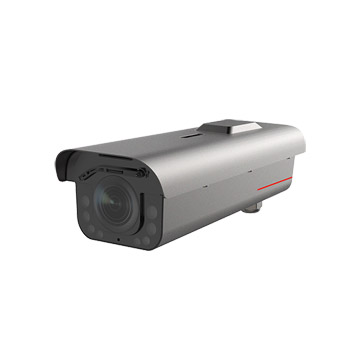

X2331-CPI Huawei 4T 3 million vehicle mount infrared integrated camera
Support 4 TOPS computing power;
Supports heat maps, vehicle and traffic data statistics;
Supports backlight adaptation, fog penetration adaptation, and speed adaptation;
Using 1/1.8" CMOS;
Software definition supports online loading and upgrade of algorithms;
Digital wide dynamic range and super wide dynamic range restore true details in high-contrast scenes;
Chip Hi3559AV100
Computing power 4 TOPS
Memory DDR4 4.0 GB
Flash SPI NAND FLASH 512.0 MB
Sensor maximum image size 3MP 2048(H)*1536(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.002 lux @ (F1.2, AGC ON), black and white: 0Lux (infrared light on)
Lens focal length 11-40mm
Lens viewing angle: horizontal: 10.6° (T end) ~ 33.2° (W end); vertical: 8° (T end) ~ 24.9° (W end)
Infrared light fill distance 30m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Heat map support
Bayonet business: ITS - bayonet passing vehicle capture, ITS - bayonet occupied bus lane detection, ITS - bayonet illegal lane change detection, ITS - bayonet retrograde detection, ITS - bayonet line pressure detection, ITS - bayonet machine Non-occupancy detection, ITS-bayonet over/low speed capture detection, ITS-bayonet yellow grid illegal stop capture detection, ITS-bayonet coil/radar speed detection, ITS-bayonet illegal U-turn detection, ITS-bayonet occupancy emergency Lane detection, ITS-bayonet vehicle statistical detection
Vehicle Mainland China license plate recognition, Hong Kong license plate recognition, license plate enhancement, body color detection, vehicle model detection, vehicle model detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M/1000M adaptive Ethernet port
Optical network interface 1 SFP slot
Power supply type AC100~240V
Power consumption: Maximum power consumption: 40W, typical power consumption: 18W
Working temperature -40℃~60℃
Working humidity 5%~95% (no condensation)
Protection grade IP66
Anti-riot IK10
Lens focal length 11-40mm
Lens viewing angle: horizontal: 10.6° (T end) ~ 33.2° (W end); vertical: 8° (T end) ~ 24.9° (W end)
Built-in infrared light support
Infrared light fill distance 30m
Power supply type AC100~240V
Power consumption: Maximum power consumption: 40W, typical power consumption: 18W
Working temperature -40℃~60℃
Working humidity 5%~95% (no condensation)
Windows self-cleaning support
Window self-cleaning index 1. Single AR+AF coating 2. Transmittance: Tmin≥90%, Tave≥91%@400~420nm&900-950nm; Tmin≥91%, Tave≥92%@400~420nm 3. Hardness: >5H 4. Water contact angle: ≥110° (before wear resistance test), 90° (after wear resistance test) 5. Salt spray test: 10 days; meets 5-year life span
Lightning protection and surge protection 6kV
Protection grade IP66
Anti-riot IK10
Overall machine weight 6.6kg
Packing weight 8.6kg
Overall machine size: 516mm×215.6mm×159mm
Packaging size 678mm×329mm×325mm
