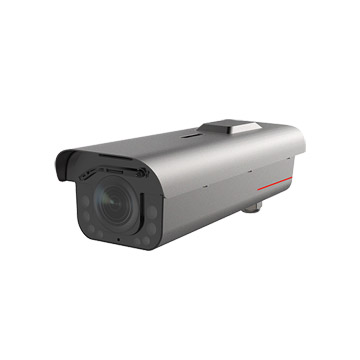

X2331-EPL Huawei 4T 3 million electric police bayonet soft light integrated camera
Support 4 TOPS computing power;
Supports heat maps, vehicle and traffic data statistics;
Supports backlight adaptation, fog penetration adaptation, and speed adaptation;
Using 1/1.8" CMOS;
Software definition supports online loading and upgrade of algorithms;
Digital wide dynamic range and super wide dynamic range restore true details in high-contrast scenes;
Chip Hi3559AV100
Computing power 4 TOPS
Memory DDR4 4.0 GB
Flash SPI NAND FLASH 512.0 MB
Sensor maximum image size 3MP 2048(H)*1536(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.0005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter)
Lens focal length 11-40mm
Lens viewing angle: horizontal: 10.6° (T end) ~ 33.2° (W end); vertical: 8° (T end) ~ 24.9° (W end)
White light fill light distance 30m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Heat map support
Electric Police Service ITS-Electric Police Capture Passing Vehicles, ITS-Electric Police Line Violations, ITS-Electric Police Illegal Lane Changes and Violations, ITS-Electric Police Driving Not Following the Directions, ITS-Electric Police Vehicle Occupation Detection, ITS-Electric Police Last number restricted traffic detection, ITS-electric police vehicle not driving in the prescribed lane detection, ITS-electric police occupying bus lane detection, ITS-electric police vehicle retrograde detection, ITS-electric police vehicle red light running detection, ITS-electric police traffic light detection Equipment inspection, ITS-electric police video traffic light recognition, ITS-electric police video speed measurement, ITS-electric police yellow grid illegal parking capture, ITS-electric police speed/low speed capture, ITS-electric police illegal U-turn detection, ITS-electric police Emergency lane occupation detection, ITS-electric police intrusion prohibition detection, ITS-electric police six-in-one
Bayonet Business ITS-Capture of passing vehicles at the bayonet, ITS-Detection of failure to yield to pedestrians at the bayonet, ITS-Detection of traffic restrictions with last number at the bayonet, ITS-Detection of large vehicles not driving in the prescribed lanes at the bayonet, ITS-Detection of bus lane occupation by the bayonet ,ITS-bayonet illegal lane change detection,ITS-bayonet retrograde detection,ITS-bayonet pressure line detection,ITS-bayonet machine occupation detection,ITS-bayonet super/low speed capture detection,ITS-bayonet yellow net ITS-bayonet driver's phone call detection while driving, ITS-bayonet driver's not wearing seat belt detection, ITS-bayonet's co-driver's not wearing seat belt detection, ITS-bayonet coil/radar speed detection ,ITS-Illegal U-turn detection at checkpoints,ITS-Emergency lane occupation detection at checkpoints,ITS-Prohibition detection at checkpoints,ITS-Statistical detection of vehicles at checkpoints
Vehicle Mainland China license plate recognition, Hong Kong license plate recognition, license plate enhancement, body color detection, vehicle model detection, vehicle model detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics, vehicle direction statistics
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M/1000M adaptive Ethernet port
Optical network interface 1 SFP slot
Power supply type AC100~240V
Power consumption: Maximum power consumption: 55W, typical power consumption: 18W
Working temperature -40℃~60℃
Working humidity 5%~95% (no condensation)
Protection grade IP66
Anti-riot IK10
Lens focal length 11-40mm
Lens viewing angle: horizontal: 10.6° (T end) ~ 33.2° (W end); vertical: 8° (T end) ~ 24.9° (W end)
Built-in white light support
White light fill light distance 30m
