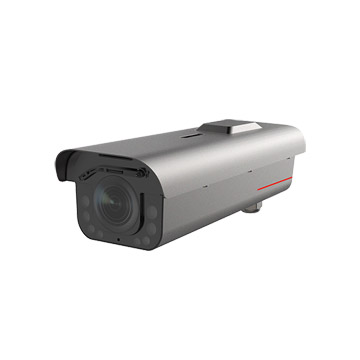

X2391-EPL 4T 9MP electric police bayonet soft light integrated camera
Support 4 TOPS computing power;
Supports heat maps, vehicle and traffic data statistics;
Supports backlight adaptation, fog penetration adaptation, and speed adaptation;
Using 1" CMOS;
Software definition supports online loading and upgrade of algorithms;
Digital wide dynamic range and super wide dynamic range restore true details in high-contrast scenes;
Chip Hi3559AV100
Computing power 4 TOPS
Memory DDR4 4.0 GB
Flash SPI NAND FLASH 512.0 MB
Sensor maximum image size 4K 3840(H)*2160(V)
Sensor photosensitive surface size 1"
Minimum illumination color: 0.0005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter)
Lens focal length 11-40mm
Lens viewing angle: horizontal: 21.1° (T end) ~ 65.1° (W end); vertical: 11.2° (T end) ~ 34.9° (W end)
White light fill light distance 30m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Heat map support
Electric Police Service ITS-Electric Police Capture Passing Vehicles, ITS-Electric Police Line Violations, ITS-Electric Police Illegal Lane Changes and Violations, ITS-Electric Police Driving Not Following the Directions, ITS-Electric Police Vehicle Occupation Detection, ITS-Electric Police Last number restricted traffic detection, ITS-electric police vehicle not driving in the prescribed lane detection, ITS-electric police occupying bus lane detection, ITS-electric police vehicle retrograde detection, ITS-electric police vehicle red light running detection, ITS-electric police traffic light detection Equipment inspection, ITS-electric police video traffic light recognition, ITS-electric police video speed measurement, ITS-electric police yellow grid illegal parking capture, ITS-electric police speed/low speed capture, ITS-electric police illegal U-turn detection, ITS-electric police Emergency lane occupation detection, ITS-electric police intrusion prohibition detection, ITS-electric police six-in-one
Bayonet Business ITS-Capture of passing vehicles at the bayonet, ITS-Detection of failure to yield to pedestrians at the bayonet, ITS-Detection of traffic restrictions with last number at the bayonet, ITS-Detection of large vehicles not driving in the prescribed lanes at the bayonet, ITS-Detection of bus lane occupation by the bayonet ,ITS-bayonet illegal lane change detection,ITS-bayonet retrograde detection,ITS-bayonet pressure line detection,ITS-bayonet machine occupation detection,ITS-bayonet super/low speed capture detection,ITS-bayonet yellow net ITS-bayonet driver's phone call detection while driving, ITS-bayonet driver's not wearing seat belt detection, ITS-bayonet's co-driver's not wearing seat belt detection, ITS-bayonet coil/radar speed detection ,ITS-Illegal U-turn detection at checkpoints,ITS-Emergency lane occupation detection at checkpoints,ITS-Prohibition detection at checkpoints,ITS-Statistical detection of vehicles at checkpoints
Vehicle Mainland China license plate recognition, Hong Kong license plate recognition, license plate enhancement, body color detection, vehicle model detection, vehicle model detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics, vehicle direction statistics
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M/1000M adaptive Ethernet port
Optical network interface 1 SFP slot
Power supply type AC100~240V
Power consumption: Maximum power consumption: 55W, typical power consumption: 18W
Working temperature -40℃~60℃
Working humidity 5%~95% (no condensation)
Protection grade IP66
Anti-riot IK10
Sensor maximum image size 4K 3840(H)*2160(V)
Sensor photosensitive surface size 1"
Minimum illumination color: 0.0005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter)
Shutter 1/30s ~1/68250s In non-manual exposure mode, default bayonet: Video: 1/250s Snapshot: 1/500s Default alarm: Video: 1/250s Snapshot: 1/250s
Gain control: During manual exposure, a total of 101 steps from 0 to 100 can be set in steps of 1. Default is 0.
White balance automatic/auto tracking/manual/one-key trigger
Digital Noise Reduction 2D/3D Noise Reduction
wide dynamic range digital wide dynamic range
Strong light suppression support
Algorithm fog penetration support
Exposure compensation support
Exposure mode support
Electric focus support
Backlight adaptive support
Fog adaptive support
Speed adaptive support
Distortion correction support
Image correction supports image mirroring (horizontal mirroring, vertical mirroring, horizontal and vertical mirroring)
GPS involves
Lens focal length 11-40mm
Lens viewing angle: horizontal: 21.1° (T end) ~ 65.1° (W end); vertical: 11.2° (T end) ~ 34.9° (W end)
Built-in white light support
White light fill light distance 30m
Video encoding format MJPEG/H.264/H.265
Number of video encoding channels: five streams
Main stream resolution 4096×2160(4K), 3840×2160(4K), 3072×1728(5MP), 2560×1440(4MP), 2304×1296(3MP), 1920×1080(1080P), 1280×720 (720P)
Sub-stream resolution Sub-stream one: 1920×1080 (1080P), 1280×720 (720P), 720×576 (PAL), 720×480 (NTSC); Sub-stream two: 1280×720 (720P), 720×576(PAL), 720×480(NTSC), 352×288(PAL), 352×240(NTSC); Sub-stream three: 720×576(PAL), 720×480(NTSC), 352×288 (PAL), 352×240 (NTSC); Sub-stream four: 720×576 (PAL), 720×480 (NTSC), 352×288 (PAL), 352×240 (NTSC)
Video frame rate 30/25fps can be set
Video bit rate only for H.264 and H.265 1080P~4K 512Kbps ~ 16Mbps 720P 384Kbps ~ 8Mbps D1 256K ~ 4Mbps CIF 32K ~ 1Mbps
ROI (Region of Interest Coding) Each channel supports 4 groups. The quality of ROI relative to non-ROI is adjustable from 0 to 10 in steps of 1.
Audio encoding format G.711a/G.711u/G.726/OPUS
Audio sampling rate G.711a/G.711u/G.726: 8K OPUS: 8K/12K/16K/24K/48K
Audio bit rate G.711a/G.711u: 64kbps; G.726: 16, 24, 32, 40kbps can be set; OPUS: 16/24/32/40/64/96/128/160/192/224/256 /288Kbps can be set
Heat map support
Vehicle Mainland China license plate recognition, Hong Kong license plate recognition, license plate enhancement, body color detection, vehicle model detection, vehicle model detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics, vehicle direction statistics
Audio anomaly detection, audio presence/absence detection, audio sudden rise and drop detection
Electric Police Service ITS-Electric Police Capture Passing Vehicles, ITS-Electric Police Line Violations, ITS-Electric Police Illegal Lane Changes and Violations, ITS-Electric Police Driving Not Following the Directions, ITS-Electric Police Vehicle Occupation Detection, ITS-Electric Police Last number restricted traffic detection, ITS-electric police vehicle not driving in the prescribed lane detection, ITS-electric police occupying bus lane detection, ITS-electric police vehicle retrograde detection, ITS-electric police vehicle red light running detection, ITS-electric police traffic light detection Equipment inspection, ITS-electric police video traffic light recognition, ITS-electric police video speed measurement, ITS-electric police yellow grid illegal parking capture, ITS-electric police speed/low speed capture, ITS-electric police illegal U-turn detection, ITS-electric police Emergency lane occupation detection, ITS-electric police intrusion prohibition detection, ITS-electric police six-in-one
Bayonet Business ITS-Capture of passing vehicles at the bayonet, ITS-Detection of failure to yield to pedestrians at the bayonet, ITS-Detection of traffic restrictions with last number at the bayonet, ITS-Detection of large vehicles not driving in the prescribed lanes at the bayonet, ITS-Detection of bus lane occupation by the bayonet ,ITS-bayonet illegal lane change detection,ITS-bayonet retrograde detection,ITS-bayonet pressure line detection,ITS-bayonet machine occupation detection,ITS-bayonet super/low speed capture detection,ITS-bayonet yellow net ITS-bayonet driver's phone call detection while driving, ITS-bayonet driver's not wearing seat belt detection, ITS-bayonet's co-driver's not wearing seat belt detection, ITS-bayonet coil/radar speed detection ,ITS-Illegal U-turn detection at checkpoints,ITS-Emergency lane occupation detection at checkpoints,ITS-Prohibition detection at checkpoints,ITS-Statistical detection of vehicles at checkpoints
SD interface supports maximum capacity. Provides MicroSD card slot, supports MicroSDHC/MicroSDXC, and supports memory cards with a maximum capacity of 256GB.
Audio input interface supported (1 LINE IN or 1 external MIC)
Audio output interface supports (1 LINE OUT)
RS485 interface supported, 3 half-duplex RS485 interfaces
RS232 interface support
Switching interface supports, 4 channels of optocoupler input/4 channels of optocoupler output/1 channel of relay output (alarm supports 4 inputs and 1 output, 4 inputs are multiplexed with IO coil input)
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M/1000M adaptive Ethernet port
Optical network interface 1 SFP slot
Optoelectronic serial interface support
USB related
Protocols supported by IPV4: TCP, UDP, IPv4, IPv6, DHCP, DHCPv6, DNS, ICMP, ICMPv6, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/ V3), 802.1x, QoS, DDNS, SMTP Note: DDNS adopts peanut shell solution
IPV6 supported protocols HTTPS, RTP, RTCP, RTSP, SSH, Onvif
Business constraints supported by IPV6 Web page: live broadcast, recording, IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration Onvif: live broadcast, recording, IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration, Probe is not supported Business Note: IPV6 multicast is not supported
Access protocol SDK (private protocol), Rest API (private protocol), GA/T 1400, DB3311
User permissions are divided into 3 levels: administrator, senior operator, and ordinary operator
Safe mode Username and password authentication, support 802.1.x, HTTPS digital certificate
Video digital watermark support
Image digital watermark support
GB35114 support
Secure boot support
Security/encryption intrusion detection support
Power supply type AC100~240V
Power consumption: Maximum power consumption: 55W, typical power consumption: 18W
Working temperature -40℃~60℃
Working humidity 5%~95% (no condensation)
Windows self-cleaning support
Window self-cleaning index 1. Single AR+AF coating 2. Transmittance: Tmin≥90%, Tave≥91%@400~420nm&900-950nm; Tmin≥91%, Tave≥92%@400~420nm 3. Hardness: >5H 4. Water contact angle: ≥110° (before wear resistance test), 90° (after wear resistance test) 5. Salt spray test: 10 days; meets 5-year life span
Lightning protection and surge protection 6kV
Protection grade IP66
Anti-riot IK10
Overall machine weight 6.6kg
Packing weight 8.6kg
Overall machine size: 516mm×215.6mm×159mm
Packaging size 678mm×329mm×325mm
