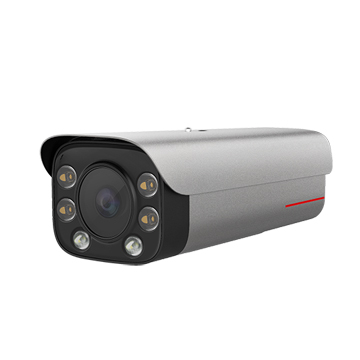

X2221-VL 4T 2 million vehicle identification soft light tube camera
Support 4 TOPS computing power;
Supports heat maps, 1-to-N function, behavior analysis, human body, machine and non-human body, vehicle, vehicle event detection, and traffic data statistics;
Supports backlight adaptation, fog penetration adaptation, and speed adaptation;
Using 1/1.8" CMOS;
Software definition supports online loading and upgrade of algorithms;
120dB super wide dynamic range, restoring true details in high-contrast scenes;

Chip Hi3559AV100
Computing power 4 TOPS
Memory DDR4 2.0 GB
Flash SPI NAND FLASH 512.0 MB
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.0002Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter)
Lens focal length 12-55mm
Lens viewing angle: horizontal: 8.3° (T end) ~ 27.1° (W end); vertical: 5.7° (T end) ~ 18.3° (W end)
White light fill light distance 30m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Heat map support
1 drag N function supported
Vehicle Mainland China license plate recognition, Hong Kong license plate recognition, license plate enhancement, body color detection, car model detection, car model detection
Vehicle event detection: non-occupancy detection, non-occupancy detection, illegal parking detection, retrograde/reversing detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Human body detection, human attribute detection
Non-motor vehicle traffic statistics: machine and non-person detection, pedestrian detection, motor vehicle detection, cyclist attribute detection
RS485 interface supported
Switching interface support
Ethernet interface supported
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M/1000M adaptive Ethernet port
Power supply type AC24V,POE(IEEE 802.3bt)
Power consumption: Maximum power consumption: 32W, typical power consumption: 8.5W
Working temperature -40℃~60℃
Working humidity 5%~95% (no condensation)
Protection grade IP67
Anti-riot IK10
